Public Transport Planning with PTV Visum

Use PTV Visum to tap the full potential of public transport planning and state-of-the-art calculation methods which cover all strategic processes of traffic engineering and transport planning. Not only does the software flexibly adapts to your company’s processes, but it can also be used as a central platform for public transport authorities, transport associations, or transport operators.

With our public transport planning function within PTV Visum, timetable and network data can be imported from most common systems (via interfaces from GIS and timetable information) and used for modelling the current public transport supply. All services can be displayed and edited in the public transport network and timetable editor.

PTV Visum offers a robust set of assignment algorithms to simulate passenger’s behaviour, including headway-based and timetable-based procedures. Impacts of the fare model and capacity restraints can be taken into account in both approaches.

As a service provider, you must always check the cost-effectiveness of your service. This includes a comprehensive analysis of results by the operator, line, passengers, and much more. PTV Visum provides a wide range of evaluation options and assists you in identifying potential cost savings during public transport planning.

One of the classic tasks of network and supply planning is to provide passengers with an attractive and efficient service. PTV Visum is the ideal tool for spatial and temporal planning of public transport supply. With its comprehensive analysis and public transport planning functions, weak spots can be identified and rectified. Even forecast scenarios can be analysed before any measures are implemented.

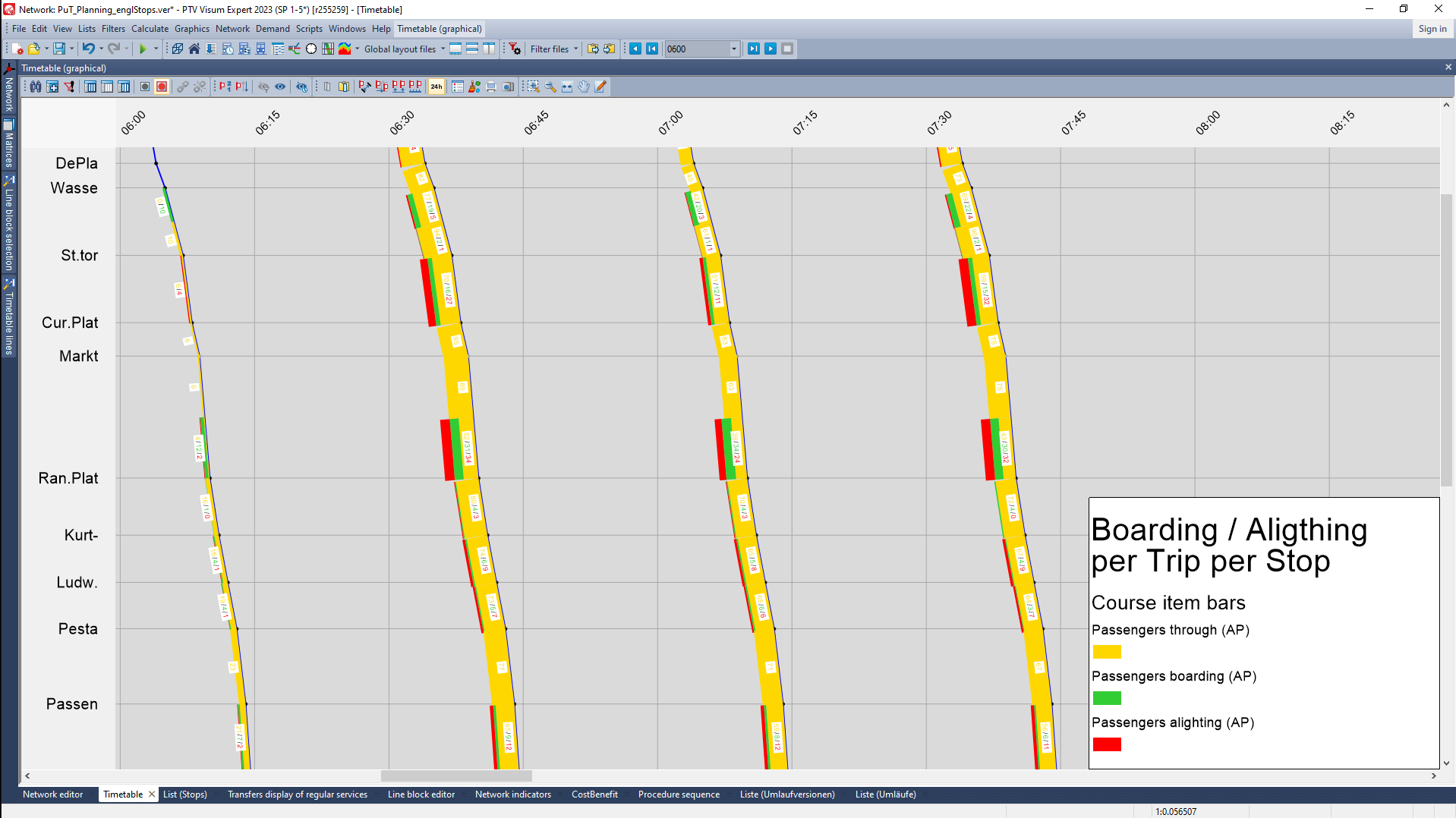

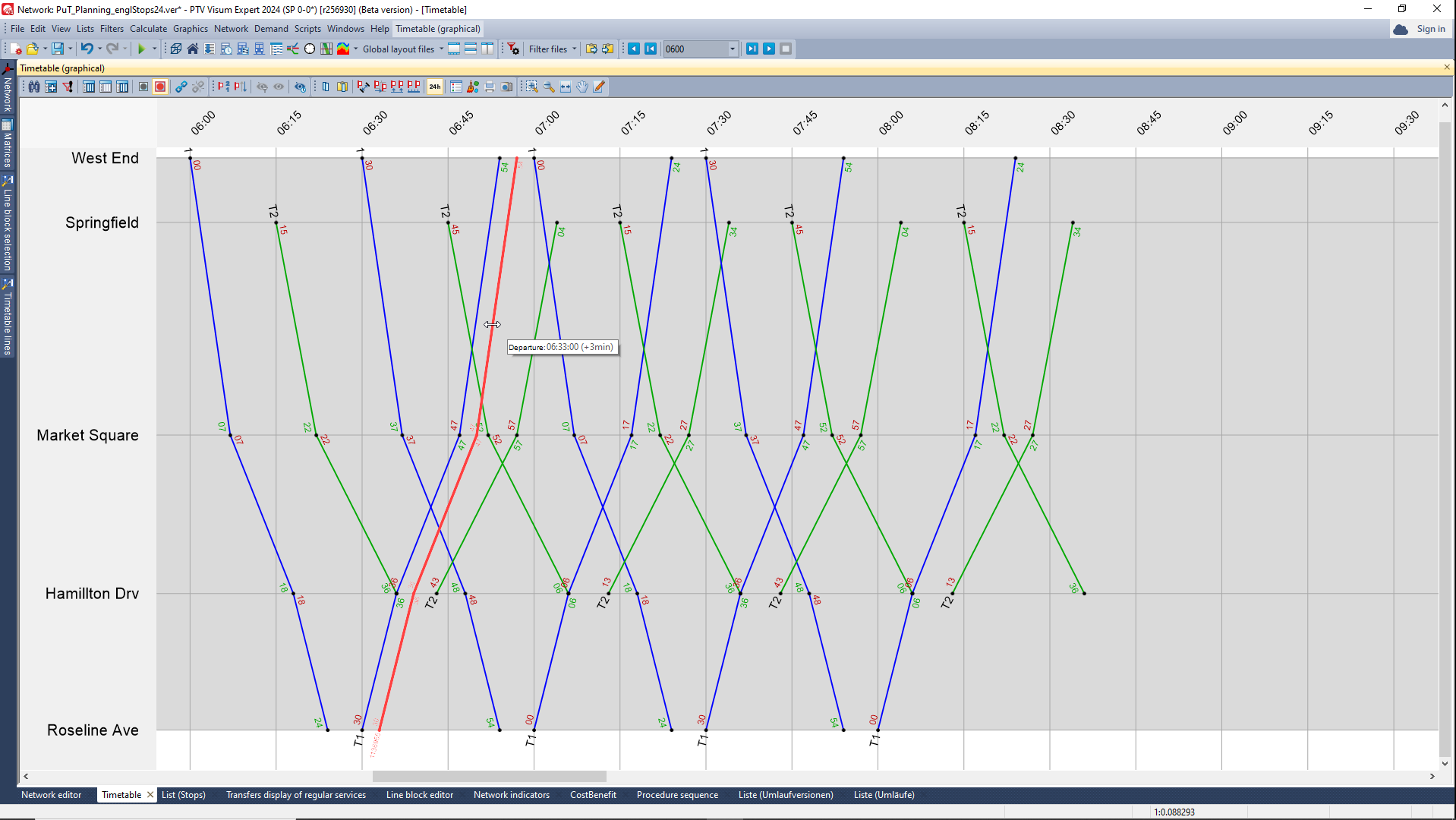

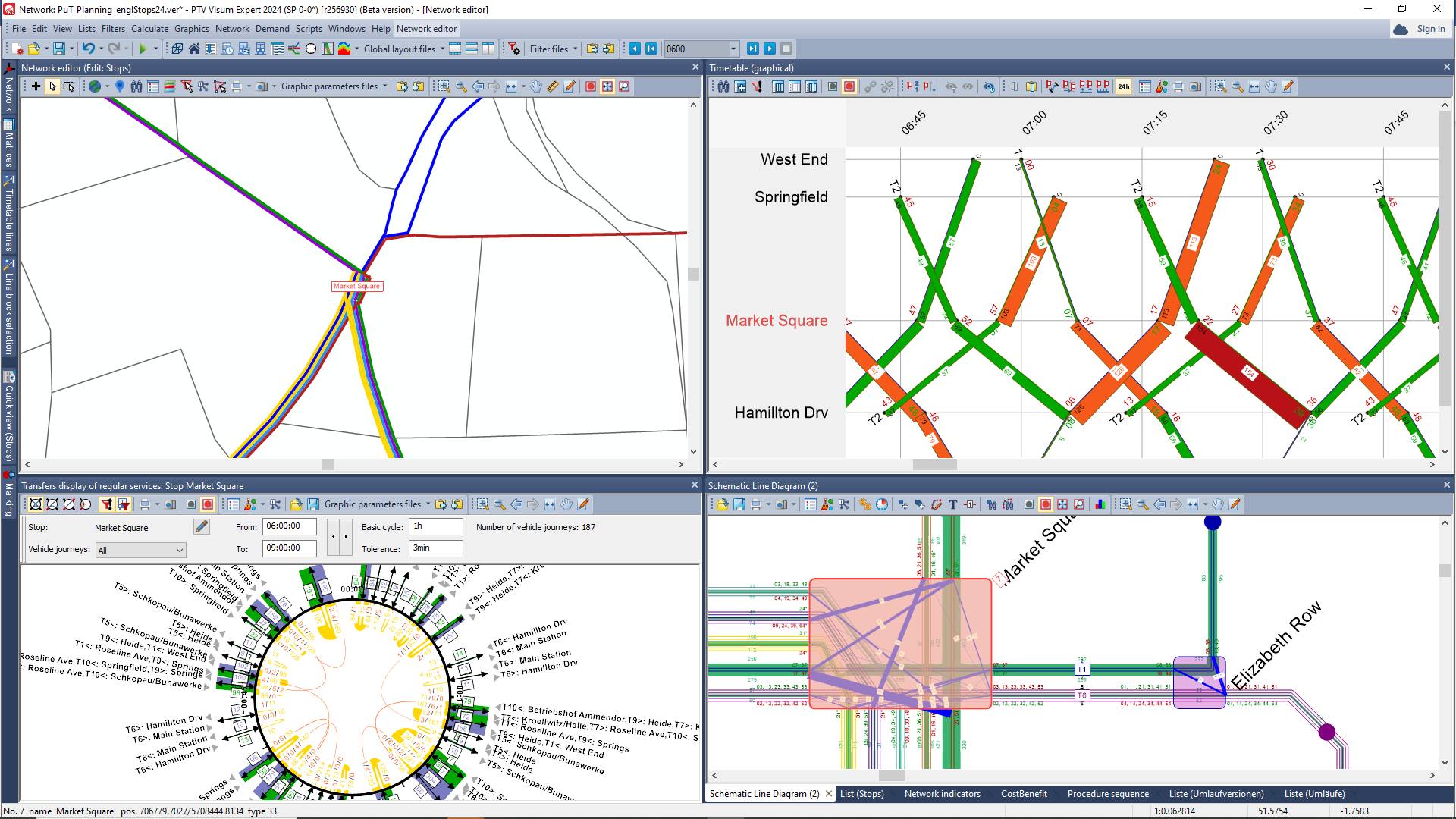

The graphical timetable editor displays the timetable’s trips in a time-distance diagram. Depicting multiple lines, a user selection of stops and arrival/departure times is ideal for a service planner.

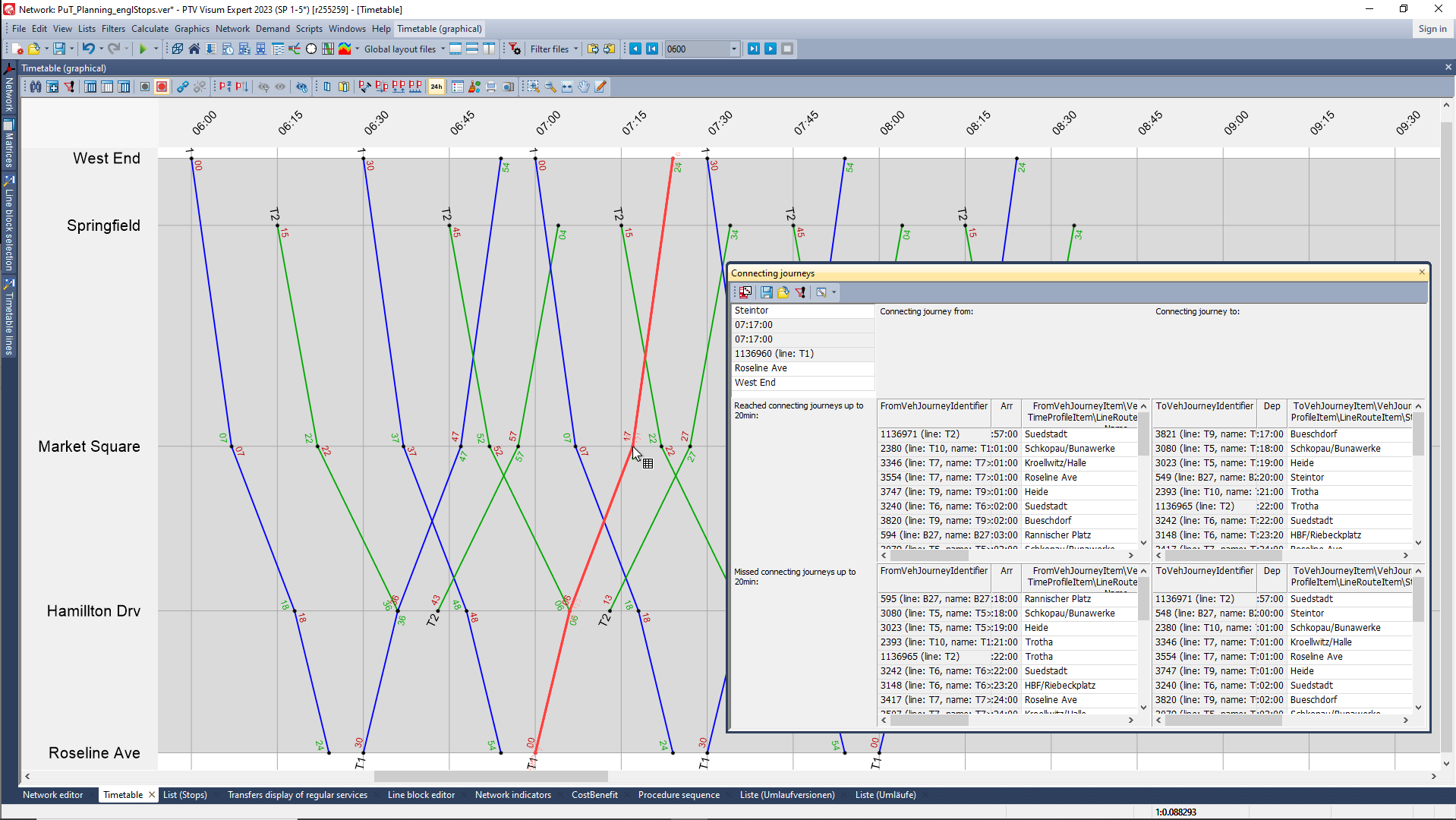

By clicking on one journey near a transfer stop, all possible and missed connection journeys are presented in a table. This gives planners valuable insights for connection optimization.

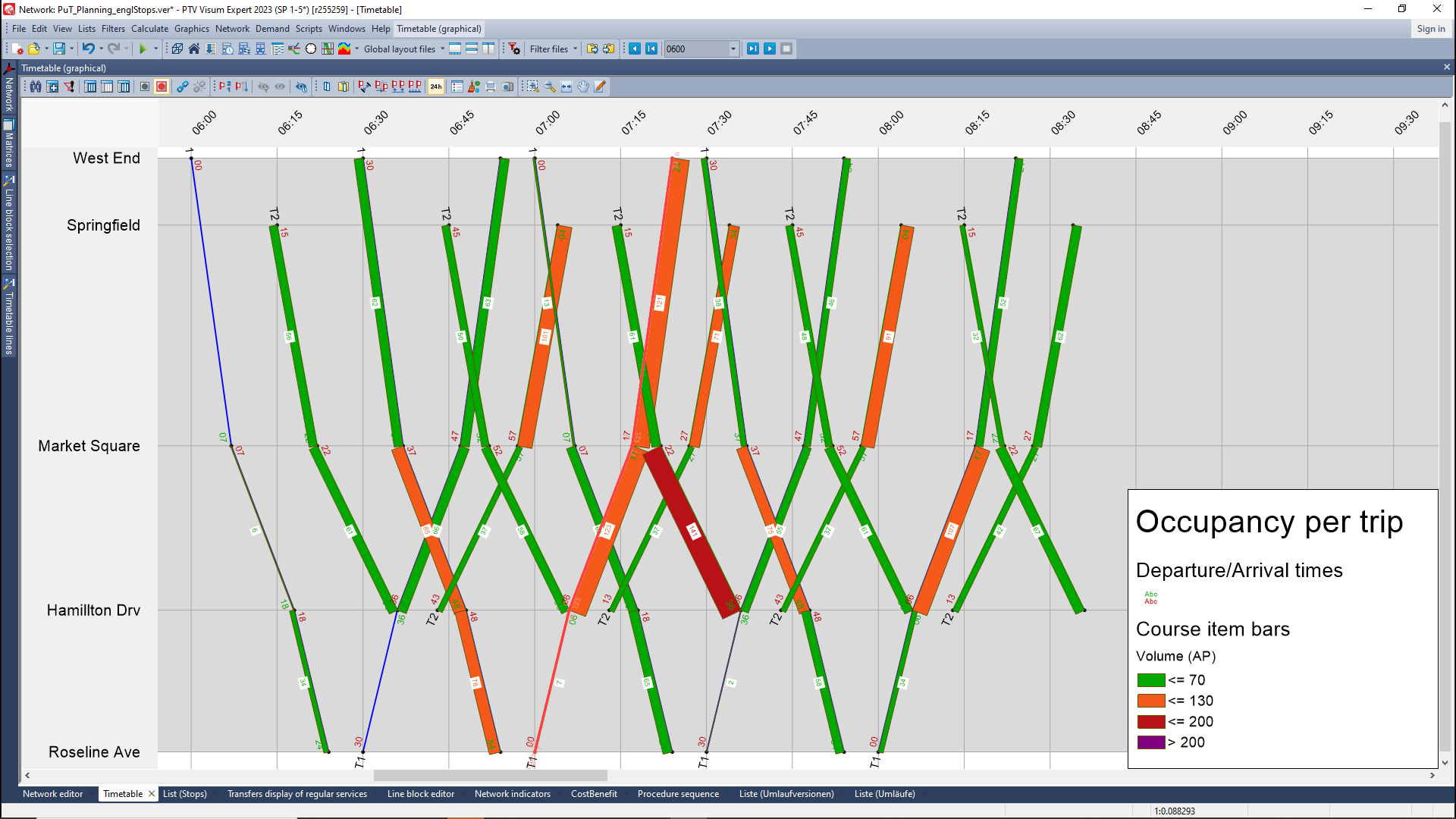

When combining it with count data and PTV Visum assignment results, the demand distribution on the single vehicle journeys is visible. Therefore, you can visualize the sections of high occupancy on vehicles and demand peaks over time and space.

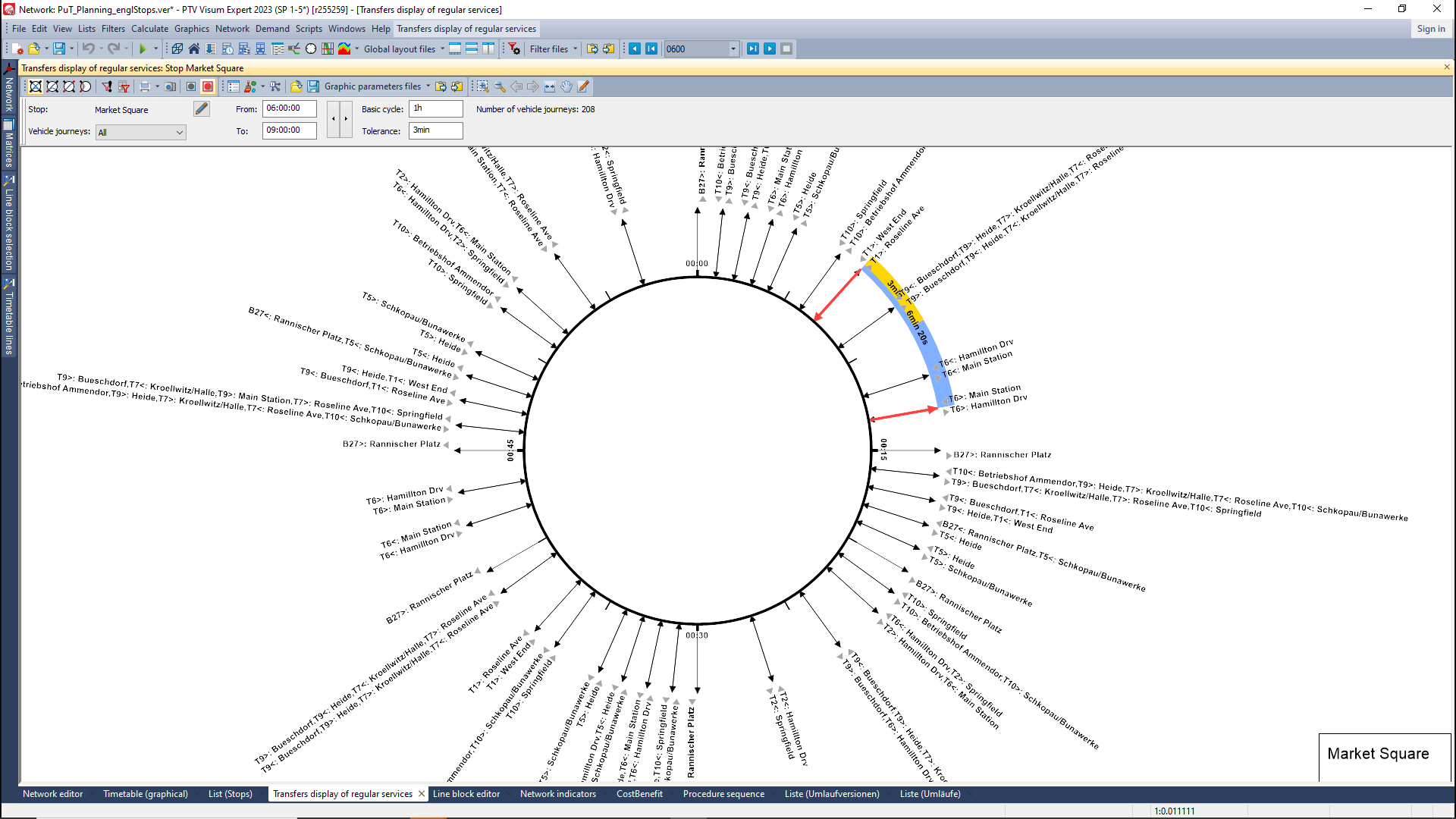

The transfer display depicts all transfers in a given time on one stop. The circle mimics a clock, the arrows represent the arriving and departing vehicle journeys. The position indicates the transfer time between arriving and departing trips. By selecting two trips, the required walking time and waiting time between those are indicated.

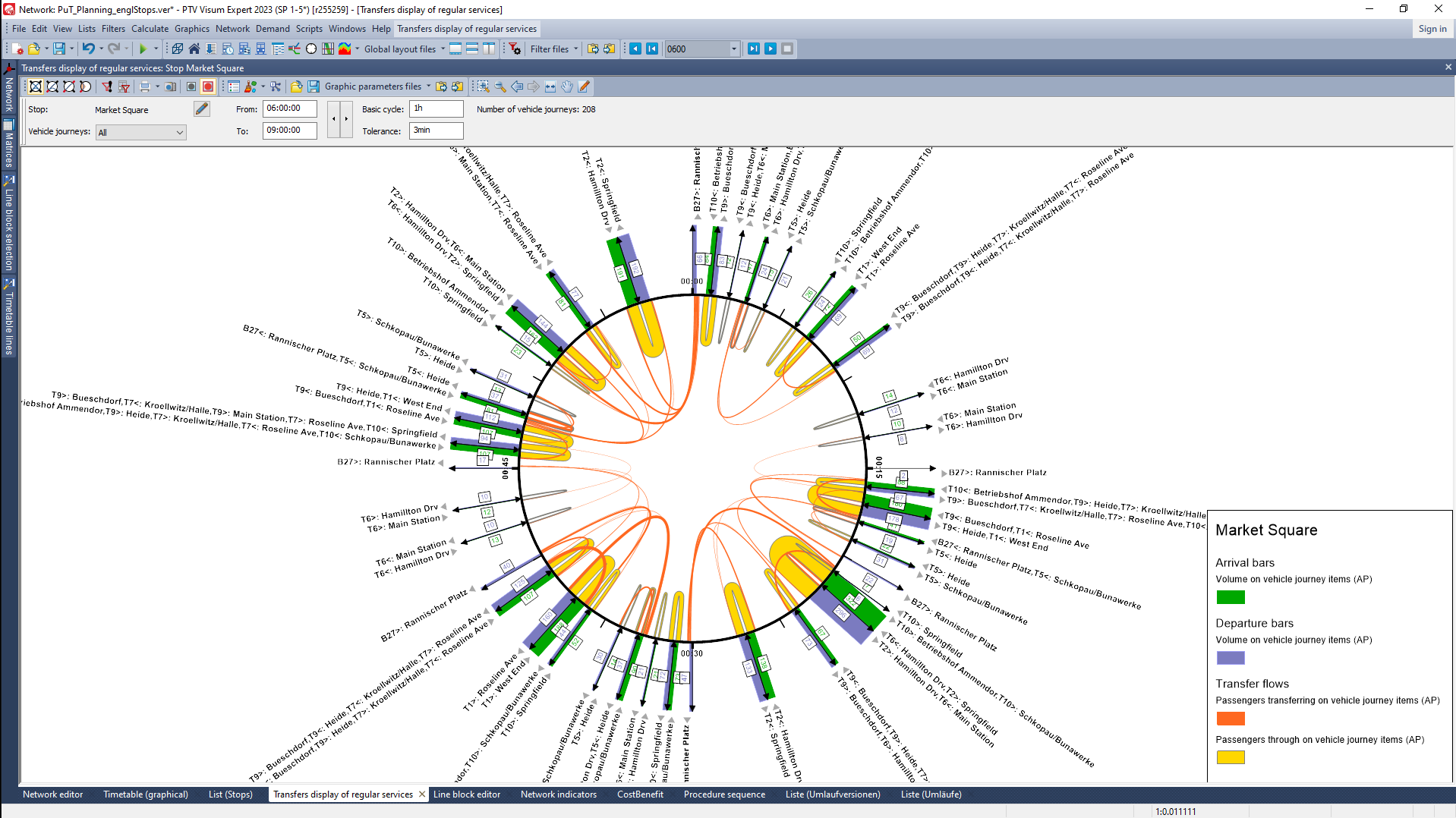

Combining it with counting data, or the PTV Visum assignment results, clearly indicates which connections are currently used. Reducing waiting times for these connections improves service quality for passengers.

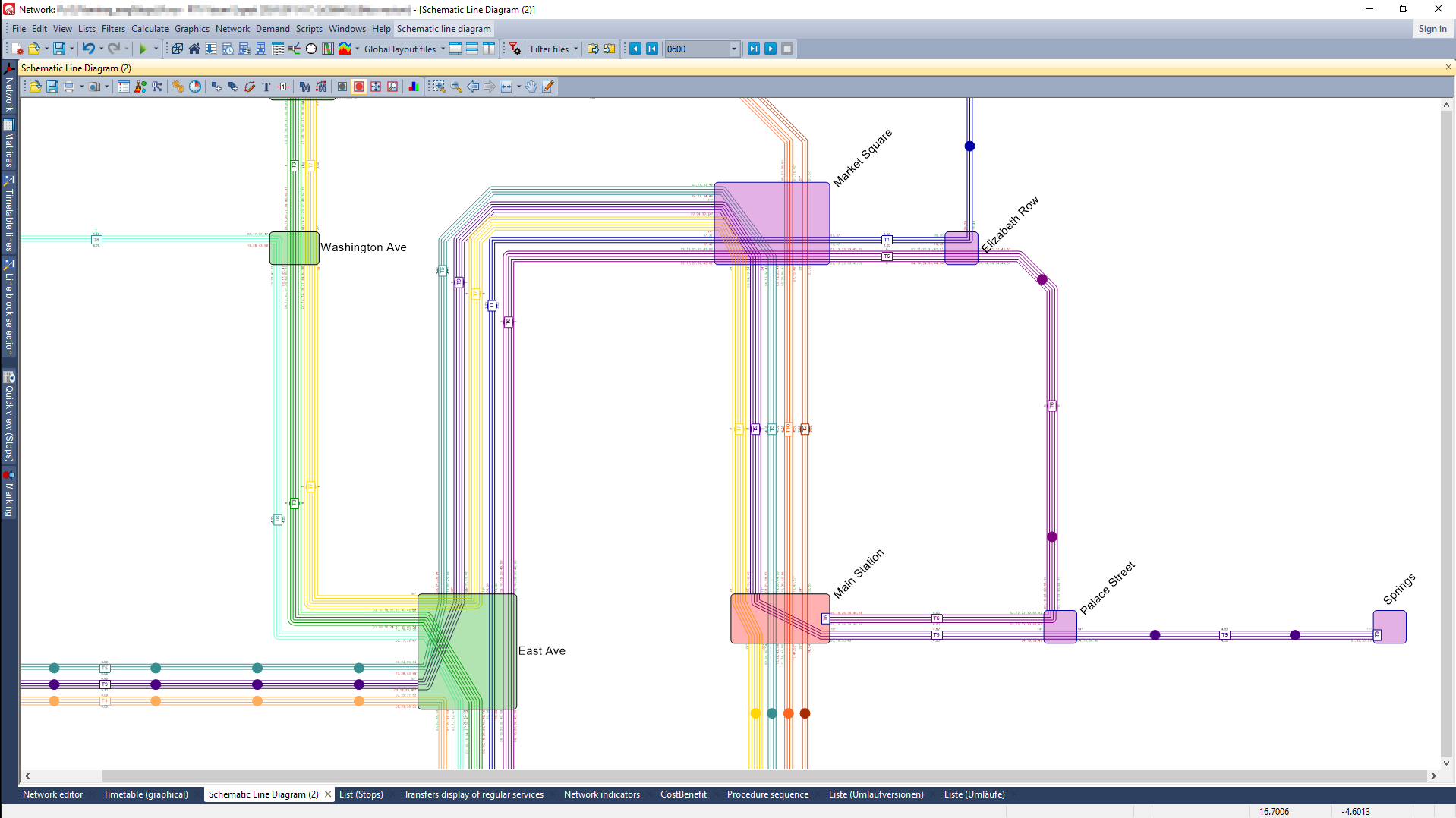

Supply planners focus on network planning, timetable design, and connection optimization. The major elements - line courses, served stops and frequencies, and headway offsets - can be summarized in one view: The schematic line diagram. This kind of display supports the planning of public transport supply by providing a quick overview and serves as a tool to communicate ideas to other stakeholders.

Extensive graphic parameters, bars, and labeling options allow you to clearly present important aspects, such as:

• service frequencies
• departure times
• service type operators

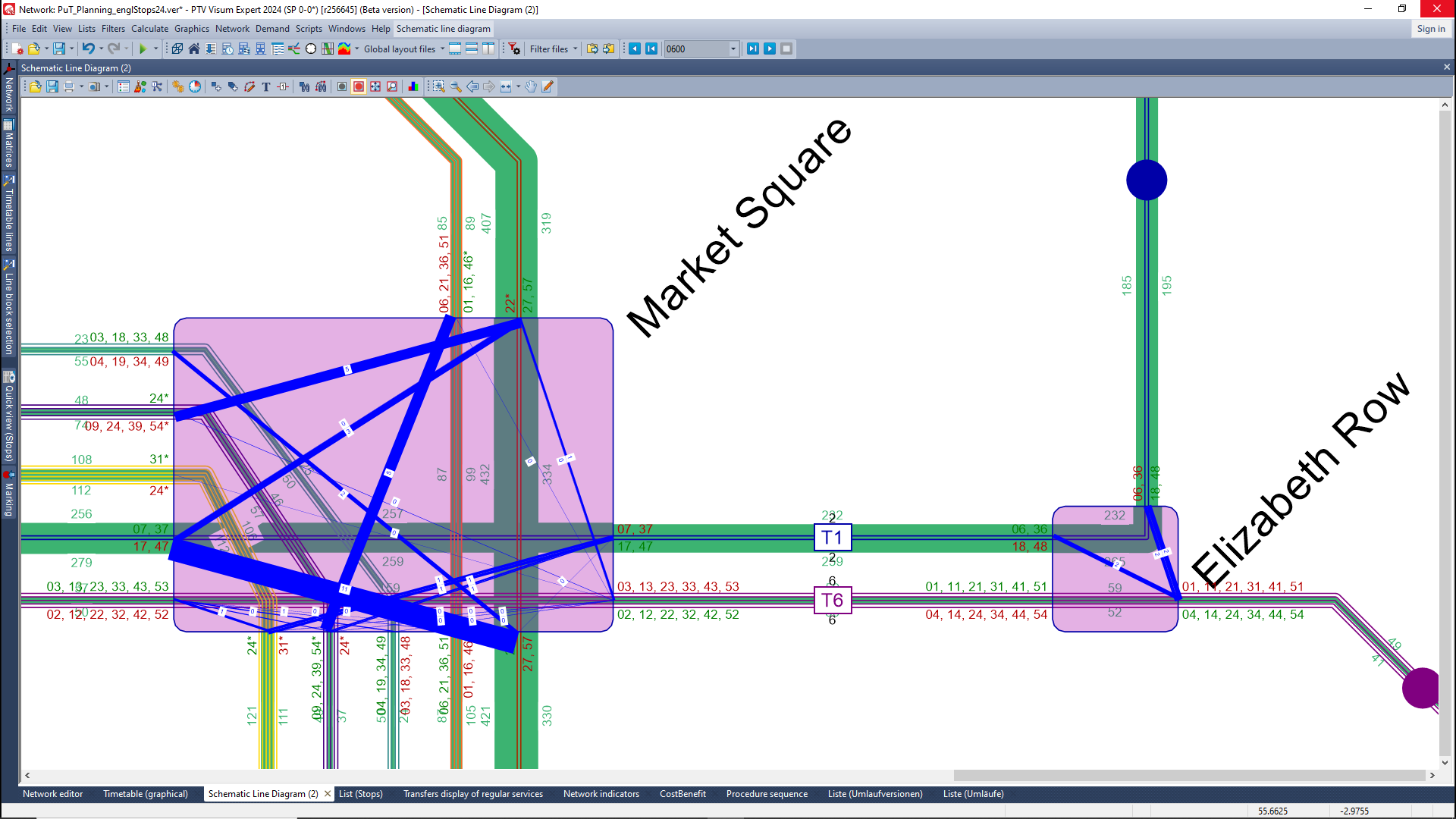

• model results: capacities, volumes, transfer flows

A unique feature of PTV Visum is that it is one software suite, based on one dataset. Therefore, changes in one view are immediately updated in the other. Synchronization is possible, which means clicking on one object in one view will mark it in the other views. This enhances your daily work: You continue your work while choosing the optimal view on your data.

These features enhance the service design and give a deeper insight into the effects on the system.

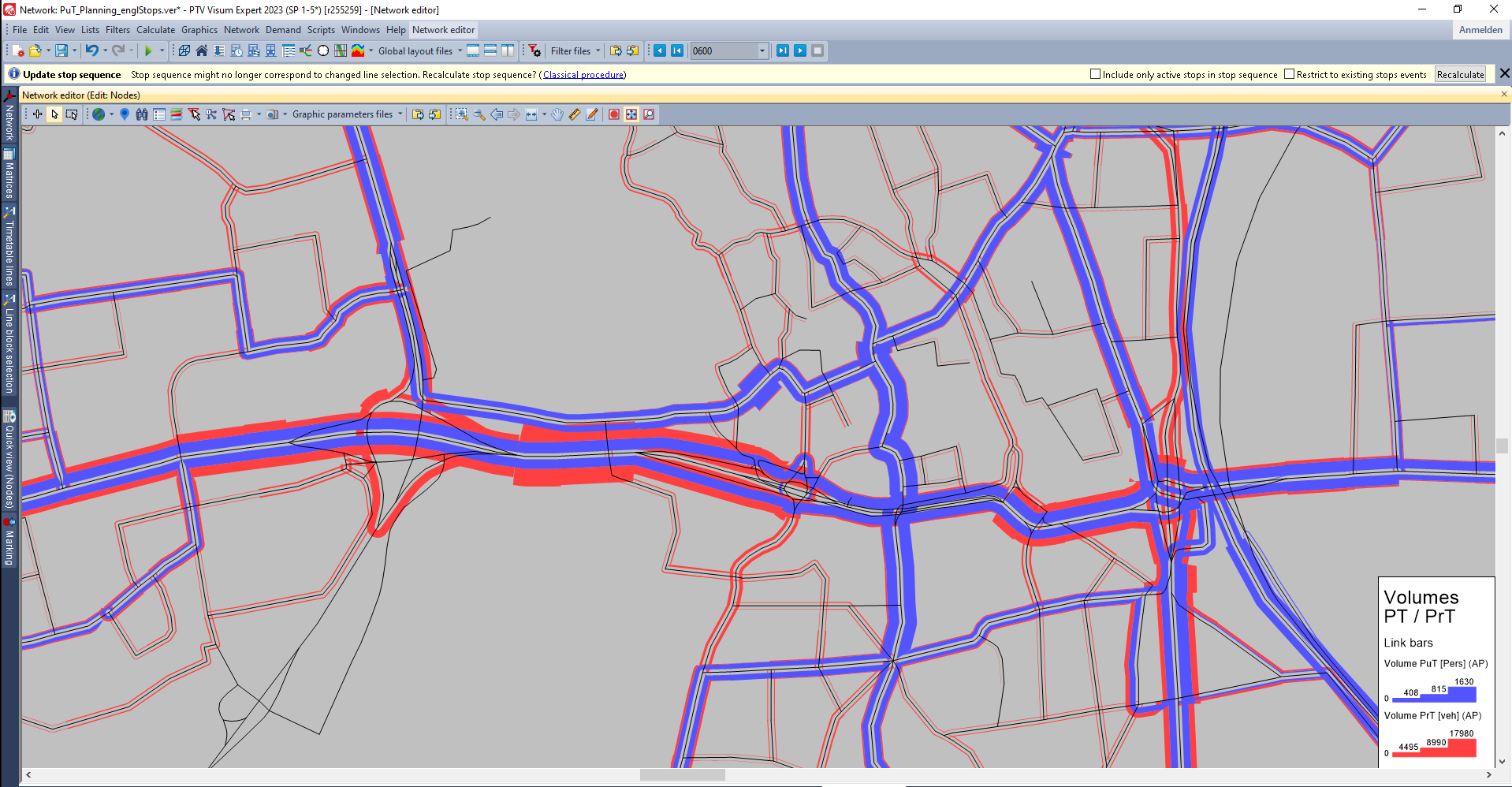

Multimodality aspects: Calculating modal shift. In PTV Visum you model not only public transport, but all modes of mobility. You can model people’s choices of a specific transport system. Therefore, you can estimate how many people will switch to public transport from other modes, because of planned measures or scenarios.

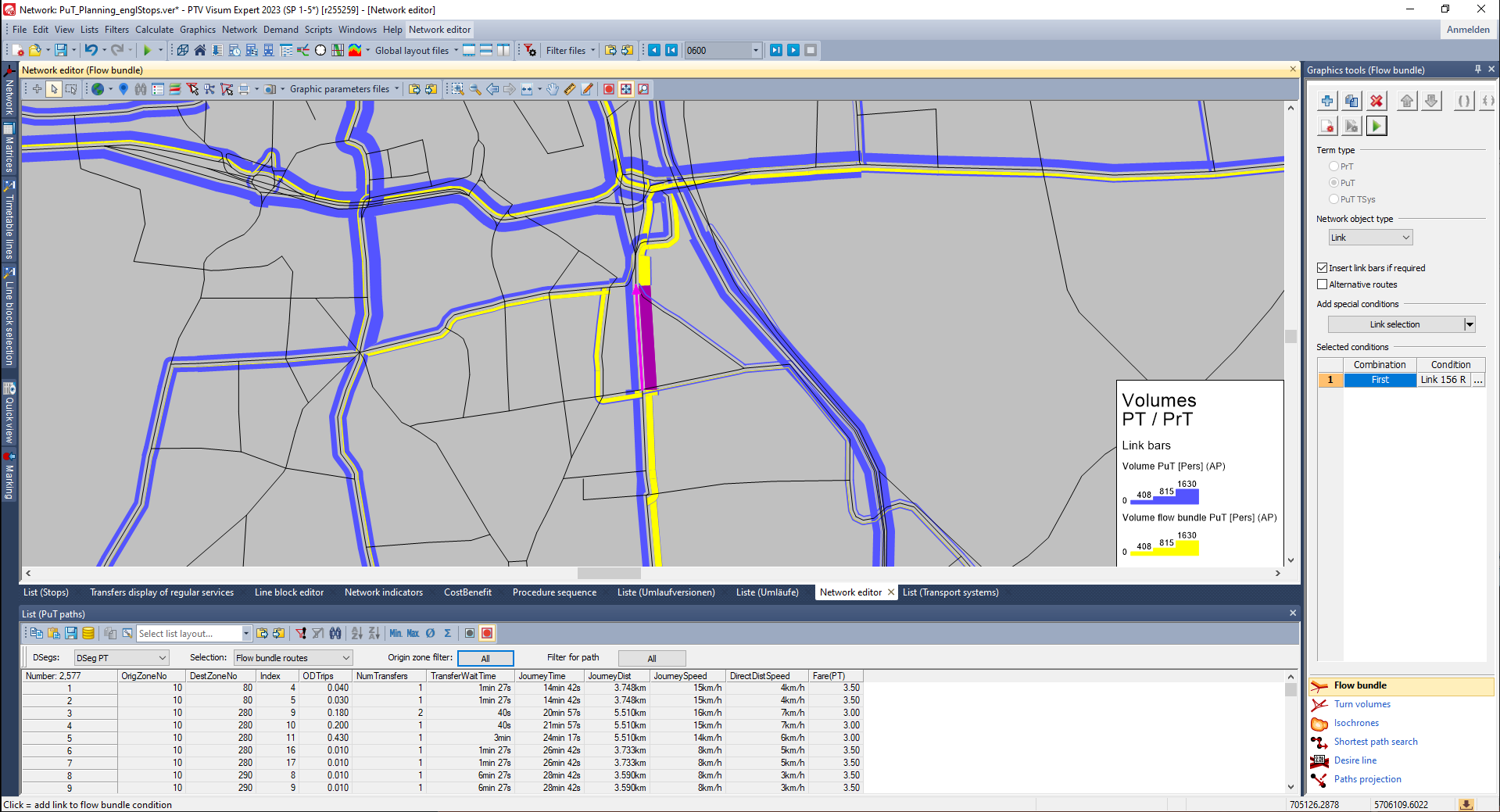

Assignments & posteriori analysis: In an assignment, combining demand and supply results in a set of individual paths. All the connections made by passengers are stored in the model, with the exact schedule and timestamps. This data can be assessed in multiple posteriori analysis, like selected link analysis or skim matrix calculation.

Timetable-based assignment of headway-based supply: In early planning phases, not all details of a planned supply are available. A new extension of the timetable based-assignment procedure can deal with PT services, which only holds the headway information, but not the information about the departure time. This enables planners to include such lines in the network without assuming connection details.

Headway Offset Optimization: A major part of service planning is optimizing the connection between lines. Therefore, PTV Visum offers an algorithm for optimizing the offset of headways for a single line, or the entire network, to minimize passengers’ waiting times.


Operating Indicators:

Vehicle Scheduling: Vehicle Scheduling turns the timetable into tour plans for buses and trams. It derives the number of needed vehicles and the performance indicators like service mileage and hour.

Cost Calculation: Having the performance indicators on all levels of the timetable enables you to derive the operating cost of the timetable.

Cost / Benefit Calculation (Standi 2016+): Often, expensive public transport infrastructure measures are subsidized. Therefore, it must be proven a project is macro-economically sensible. With PTV Visum you can derive all needed characteristic values to provide the evidence (e.g., Standi 2016+).
